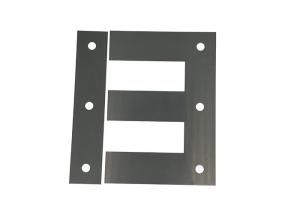

3 Phase 50WW470 400 6 Holes ±0.10mm Ei Lamination Core

Name: 3 Phase 50WW470 400 6 Holes 010mm Ei Lamination Core
Brand: HengTong
Price: 1 USD

Place of Origin : JiangSu,China

Brand Name : HengTong

Certification : CE

Model Number : Customer settings

MOQ : 50-100

Price : consultative

Packaging Details : standard packaging

Delivery Time : 7-10

The unmarked tolerance : ±0.10mm

Holes : With 6 holes

Bur : ±0.05mm

Unit : MM

Coil number : Autotransformer

Usage : Electronic

Contact Now

3 phase 400 6 holes without annealed silicon steel automatic punching sheet

Magnetic Properties

The magnetic properties of the product is featured by its low core loss, high permeability and excellent application performance

Thickness Tolerance

The good thickness tolerance is characterized by small difference in thickness in a direction parallel to the direction of rolling, small difference in thickness in a direction perpendicular to the direction of rolling, and high lamination factor.

Processing Properties

The product is suitable for punching and cutting with excellent dimensional tolerance.

Insulation Coating

The insulation coating has small color deviation, good adhesiveness and excellent resistance to heating and corrosion with high insulation coating resistance. There are several types of insulation coating available for production. According to the test results performed by the professional inspection organizations, the contents of hazardous substances comply with all the prevailing international and domestic environment protection laws and regulations including EU RoHS and REACH regulations.

Item	Ballast Core
Type	Steel Coil
Thickness	0.35 ~ 0.50mm
Width	According to your requests
Coil Weight	4 ~ 8 tons
Material	BAO Stleel: B501300, B50A1000, B50A800, B50A700, B50A600, B50A470, B35A440, B35A550, B65A600, B65A1600 B WU Steel: 50WW1300, 50WW1000, 50WW800, 50WW700, 50WW600, 50WW470, 35WW350, 35WW310, 65AW600, 65AW1600 AN Steel: 50AW1300, 50AW1000, 50AW800, 50AW700, 50AW600, 65AW1600, 65AW600, 35AW440, 35AW550 Tai Steel: 50TW290, 50TW310, 50TW470, 50TW600, 50TW800
Surface Treatment	C-4 Insulated Coated
OEM and ODM	Welcome
Application	Motor, electric engine, dynamo, transformer, electromagnetic switch, reactor, magnetic amplifiers, ballast, relay, yoke flow circle and other industry usage.
